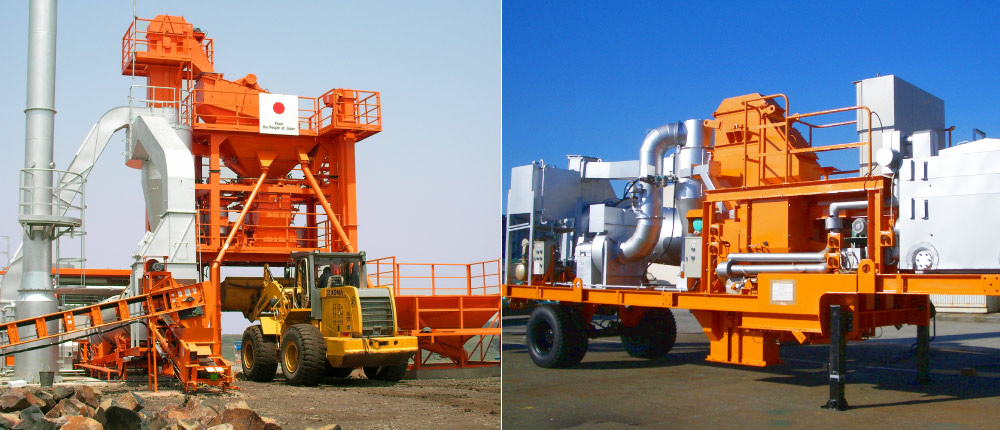

ATOM Series 500/600 (30t/40t)
ATOM is a fully automated compact asphalt mixing plant for production of a high-quality asphalt mixture with stable production and low emissions of dust, noise, and nitrogen oxide. It is easy to install and dismantle, with a short transportation period.
Specifications
| Type | ATOM-600 | |
|---|---|---|
| Capacity | Max.40t/H; Subject to moisture content 5%, Raise temperature by 150°C | |
| Dryer Unit | Dryer | Heat-pack dryer |
| Burner | NTB-3D | |
| Dust Collection Unit |
Standard | Dry bag filter |
| (optional) | (Primary)Dry cyclone (Secondary)Wet dust collector | |
| Mixing Tower | Hot Bin | 4 compartments |
| Weighing Scale | Remote digital；indication by load sell Agg.：600kg×1.0kg As.：80kg×0.2kg Fil.：100kg×0.2kg (Option) |
|
| Spiral Flow Mixer | Twin shaft pugmill;600kg | |
| Control | PC-based control panel | |
| Standard required power *For reference only |
140kW | |
| Standard required space *For reference only |
600m2 (31.5m x 19m) | |
| Option | Shelters (Heat shelter, Weather shelter, Screen shelter, and so on), Class-B heavy oil burner, Conveyer scale, Filler supply system, Recycle system (Recycle unit, Top drum, Drum mixing plant), Hot storage silo | |
* Total enclosure is optional.
* The above specifications are subject to charge without prior notice due to improvements and/or modifications.
* The above-mentioned powers include standard accessories such as Asphalt supply system, Aggregate supply system, Fuel oil supply system, Filler supply system(option).
Mobile Plant NSB-10M

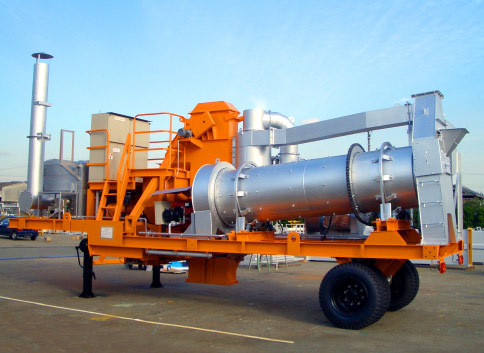

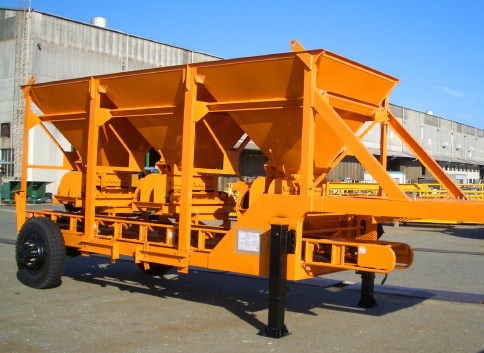

NSB-10M is a mobile-type asphalt mixing plant mounted on a trailer chassis. The dryer, primary dust collector, exhaust fan, proportioning (weighing) device, mixer, asphalt melting & supplying unit and control panel are mounted on the main chassis. Cold aggregate hoppers and feeders together with a collecting conveyor are mounted on an accessories chassis. A diesel engine generator is mounted on an independent trailer. A secondary wet-type dust collector and stack are provided as an independent and detachable unit. Cold aggregate charging and hot mix loading belt conveyors are provided as independent units respectively, in order to charge the cold aggregate into the dryer drum and to load the hot mix onto a truck.
Specifications
| Type | NSB-10M | |
|---|---|---|
| Capacity | Max.10t/H; subject to moisture content 5%; raise temperature by 140ºC |
|
| Dryer Unit |
Cylindrical inclined dryer |
φ965×3500mm capacity:Max.10 t/H |
| Burner | Pressure fuel atomizing oil burner with auto-ignition. 45 – 130 liters/H |
|
| Dust Collection Unit |
Primary dry type dust collector | Single cyclone |
| (Optional) Secondary wet type dust collector |
VO Scrubber (Rectangular Venturi type) | |
| Exhaust Fan | 90m3/min x 300mmAq (at 100 ºC) | |
| Mixing unit | Hot Elevator | Centrifugal discharging type bucket elevator 15t/H |
| Weighing system | Aggregate (200kg) : Volumetric hopper with level sensor Asphalt (50liters/min) : Gear pump with preset revolution counter |
|
| Mixer | Twin shaft pugmill mixer with replaceable wear-resistant paddle tips and liners. 200kgs/batch, 5.5kW x 4P x 1/20 |
|
| Asphalt Melting and Supply System |
Asphalt kettle | Direct heating type, 1000liters |
| Burner | Pressure fuel atomizing oil burner for Light oil (Diesel oil) | |
| Control | Control system | Out door type Push button switch and selector switch actuating magnetic contactors |
| Standard required electric power | 37.35kW | |
| Accessories | Cold aggregate storage and feeding unit, trailer type diesel engine generator Inclined belt conveyor, Hot mix belt conveyor |
|
* Some photographs in this page show plants fitted with optional equipment.
* This speifications in this page are subject to change without prior notice due to improvements and/or modifications.
