NBD Series 120 / 160 / 240
An integration of all Nikko's technologies and know-hows, with improved efficiency and simplified maintenance
High sustainability
Energy-saving
The NBD Series asphalt mixing plants are fully automated asphalt mixing plants capable of producing high-quality asphalt mixture with stable performance and low emissions of dust, noise and nitrogen oxide. Its compact design allows easy installation and dismantling, with a shorter transportation period.

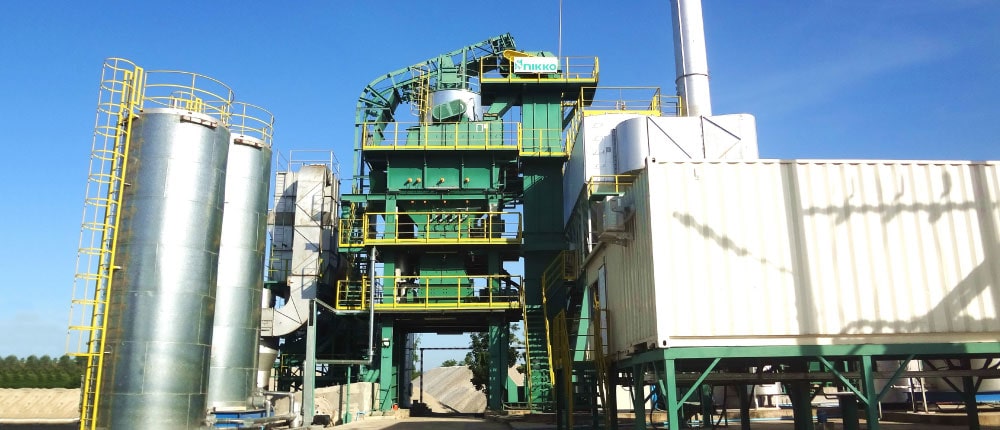

NBD-160ABD
Specifications
| type | NBD-120 | NBD-160 | NBD-240 | ||
|---|---|---|---|---|---|
| Capacity | Max.120t/H Moisture content 5% Aggregates temp. +140℃ |
Max.160t/H Moisture content 5% Aggregates temp. +140℃ |
Max.240t/H Moisture content 5% Aggregates temp. +140℃ |
||
| Dryer Unit | Heat-pack Dryer | φ1950 x 7750mm Capacity: Max.120t/H |
φ2150 x 8500mm Capacity: Max.160t/H |
φ2550 x 9000mm Capacity: Max.240t/H |
|
| Burner | Low-noise, high-pressure atomizing type max.900ℓ /H |
Low-noise, high-pressure atomizing type max.1200ℓ /H |
Low-noise, high-pressure atomizing type max.1800ℓ /H |
||
| Dust Collection Unit | Bag Filter | Filtration area; 404.0m2; Hybrid, multi-compartment |
Filtration area; 461.0m2; Hybrid, multi-compartment |
Filtration area; 720.0m2; Hybrid, multi-compartment |
|
| Exhaust Fan | 630m3/min x 3kPa at 100℃ | 800m3/min x 3.2kPa at 100℃ | 1200m3/min x 3.2kPa at 100℃ | ||
| Mixing Tower | Hot Elevator | Vertical induction | Vertical induction | Vertical induction | |
| Mixing Tower | Screen | Low-head gear-less type; max.120t/H |
Low-head gear-less type; max.160t/H |
Low-head gear-less type; max.240t/H |
|
| Hot Bin | 4 compartments; Total capacity;15.0m3 |
4 compartments; Total capacity;19.0m3 |
5 compartments; Total capacity;30.0m3 |
||
| Weighing Scale | Remote digital indication by load cell Agg.: 1600kg x 5.0kg As.: 200kg x 1.0kg Fil.: 300kg x 1.0kg |
Remote digital indication by load cell Agg.: 2000kg x 5.0kg As.: 300kg x 1.0kg Fil.: 300kg x 1.0kg |
Remote digital indication by load cell Agg.: 3000kg x 10.0kg As.: 400kg x 1.0kg Fil.: 400kg x 1.0kg |
||
| Spiral Flow Mixer | Twin shaft pugmill 1600kg |
Twin shaft pugmill 2000kg |
Twin shaft pugmill 3000kg |
||
| Asphalt Spray Equipment | Geared pump 500ℓ/min |
Geared pump 700ℓ/min |
Geared pump 900ℓ/min |
||
| Control | Control Panel | Next-Duo; Industrial computer; LCD Display |
Next-Duo; Industrial computer; LCD Display |
Next-Duo; Industrial computer; LCD Display |
|
| Power | 310kW | 375kW | 495kW | ||
| Space | 1100m2 (35.2m x 29.3m) | 1700m2 (44m x 38.9m) | 2000m2 (44.9m x 43.4m) | ||
| Options | (Recycle unit，Top drum，Drum mixing plant)，Hot mix storage silo | ||||
※Some asphalt plants displayed in this catalog are attached with optional equipment (for example, enclosure cladding, conveyor hood, etc.).
※The electric power mentioned above includes accessory units: asphalt supply system, aggregate supply system, fuel oil supply system, filter supply system(optional)
※Specifications are subject to change without prior notice due to improvements and/or modifications.
