Concrete Batching Plant Line-up
- Capacity
- 20m3～45m3
- 30m3～180m3
- 60m3～300m3
Batch Pack <20m3-45m3>Simple Structure x Compact Design
Despite its compact structure, Batch Pack is a tough concrete batching plant and is compatible with high intensity mixing.
Specifications
| Batch Pack 500 | Batch Pack 1000 | ||||
|---|---|---|---|---|---|
| Storage Bin | NONE | NONE | |||
| Weighers (Load-cell) |
G | 1+2 | 800 x 1.0kg | 1+2 | 1500 x 2.0kg |
| S | 1 | 800 x 1.0kg | 1 | 1500 x 2.0kg | |
| C | 1 | 300 x 0.2kg | 1 | 600 x 0.5kg | |
| W | 1 | 100 x 0.1kg | 1 | 200 x 0.2kg | |
| AD | 1+2 | 4 x 0.01kg | 1+2 | 8 x 0.01kg | |
| Control Panel | CPF (Standard) / Command Touch B (Optional) | ||||
| Mixer Twin shaft pugmill mixer |
FSF-500 | FSF-1000 / DSF-110 | |||
| 15kW x 1GM | 15kW x 2GM / 22kW x 2GM | ||||
| Air seal | Air seal | ||||
| Discharge type | Concrete chute | Concrete chute | |||
| Air compressor | 11kW RECIPRO TYPE | ||||
| Pure water pump | 1.5kW×1UNIT | ||||
| High pressure pump for washing | 2.2kW×1UNIT | ||||
| Dust collector (Bag filter type) | 0.75kW×1UNIT DUST BOX COLLECTING TYPE | ||||
| Supply conveyor | G | W400×30T/h | G | W450×55T/h | |
| S | W400×30T/h | S | W450×45T/h | ||
S type <30m3-180m3>High Performance x Easy assembly
The S and SS Series are simple but high-performance concrete batching plants.
They can be assembled and dismantled in a short time.
<Two models of S type batching plants for your choice>
S4,S2 type
The S2 and S4 type are equipped with a material storage bin.
Compared to the SS type, they can achieve a higher per-hour capacity.
S4,S2 type
The SS is a weighing belt conveyor type without a material storage bin.
It requires a shorter construction period for assembling and dismantling compared to the S2 and S4 type.
Specifications
| Model | SS-50P | S2S-50P | SS-100P | S4S-100P | |
|---|---|---|---|---|---|
| Theoritical discharge output | Max. 30m3/H | Max. 30m3/H | Max. 60m3/H | Max. 60m3/H | |
| Mixer Max. output/batch |
SF-500 0.5m3/batch |
SF-500 0.5m3/batch |
SF-1000 1.0m3/batch |
SF-1000 1.0m3/batch |
|
| Load-cell Weigher (Max. scale × Min. scale) |
Gravel | 800 × 1kg 2kinds | 800 × 1kg 2kinds | 1500 × 2kg 2kinds | 1500 × 2kg 2kinds |
| Sand | 800 × 1kg 1kind | 800 × 1kg 1kind | 1200 × 2kg 1kind | 1200 × 2kg 1kind | |
| Cement | 250 × 0.2kg 1kind | 250 × 0.2kg 1kind | 500 × 0.5kg 1kind | 500 × 0.5kg 1kind | |
| Water | 150 × 0.1kg 1kind | 150 × 0.1kg 1kind | 300 × 0.2kg 1kind | 300 × 0.2kg 1kind | |
| Admixture | 8 × 0.01kg 2kinds | 8 × 0.01kg 2kinds | 8 × 0.01kg 2kinds | 8 × 0.01kg 2kinds | |
| Control system | Command Touch B / Command It's-B Plus | ||||
| Storage capacity | N/A | 20m3 | N/A | 40m3 | |
* Some photographs in this page show plants fitted with optional equipment.
* This specifications in this page are subject to change without prior notice due to improvements and/or modifications.

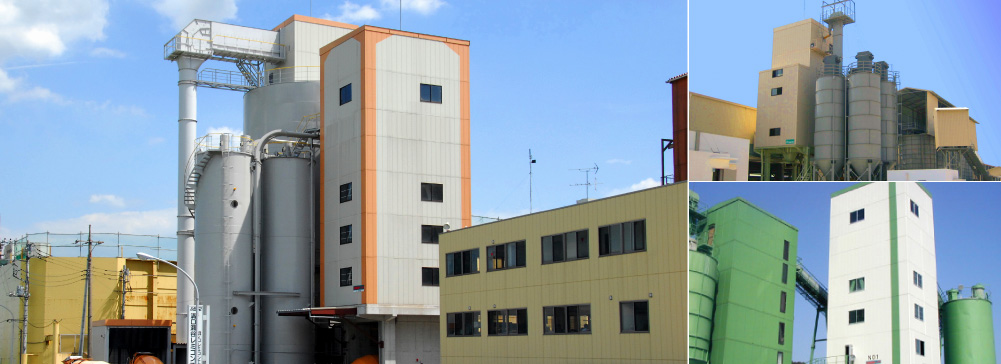

DASH <60m3-300m3>Maximum Performance x High Capacity
Maximum efficiency for each process and optimal overall balance are pursued. The DASH Series consists of high-performance batch plants that provide maximum performance with minimal investment and that minimize operating costs through maximum operating efficiency.
Specifications
| Model | DASH-110 | DASH-167 | DASH-225 | DASH-330 | |
|---|---|---|---|---|---|
| Theoritical discharge output | Max. 100m3/H | Max. 150m3/H | Max. 180m3/H | Max. 264m3/H | |
| Mixer Max. output/batch |
DSF-110 1.1m3/batch |
DSF-167 1.67m3/batch |
DSF-225 2.25m3/batch |
DSF-330 3.3m3/batch |
|
| Load-cell Weigher (Max. scale × Min. scale) |
Gravel | 1500 × 2kg 3kinds | 2500 × 2kg 4kinds | 3000 × 5kg 4kinds | 4000 × 5kg 4kinds |
| Sand | 1300 × 1kg 2kinds | 2000 × 2kg 2kinds | 2500 × 2kg 2kinds | 3500 × 5kg 2kinds | |
| Cement | 550 × 0.5kg 3kinds | 1000 × 1.0kg 3kinds | 1000 × 1.0kg 3kinds | 1500 × 1.0kg 3kinds | |
| Water | 300 × 0.2kg 2kinds | 400 × 0.5kg 2kinds | 500 × 0.5kg 2kinds | 800 × 0.5kg 3kinds | |
| Admixture | 8 × 0.01kg 2kinds | 20 × 0.02kg 2kinds 10 × 0.02kg 2kinds |
20 × 0.02kg 2kinds 20 × 0.02kg 2kinds |
30 × 0.05kg 2kinds 30 × 0.05kg 2kinds |
|
| Control system | Command Touch B / Command It's-B Plus | ||||
| Storage capacity | 43m3 | 70m3 | 110m3 | 180m3 | |
* Some photographs in this page show plants fitted with optional equipment.
* This specifications in this page are subject to change without prior notice due to improvements and/or modifications.
