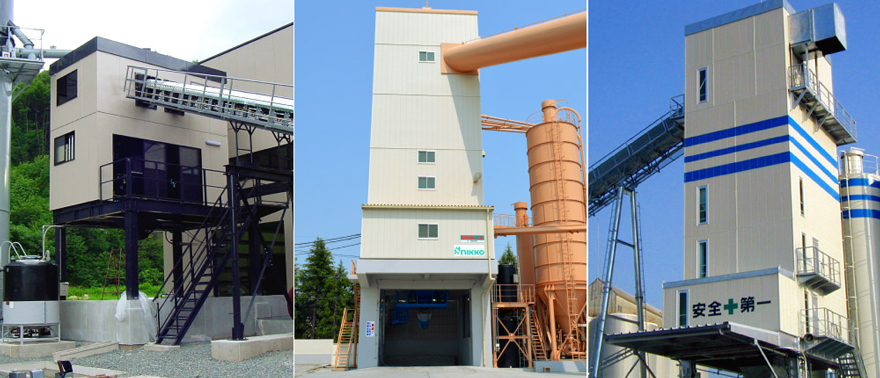

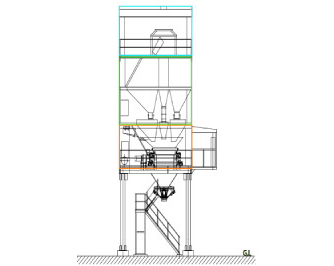

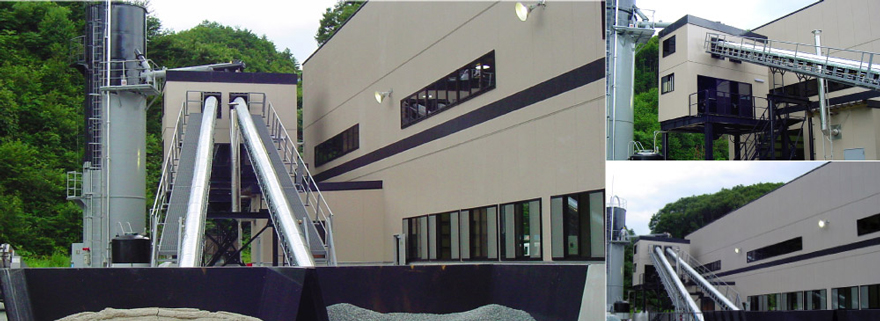

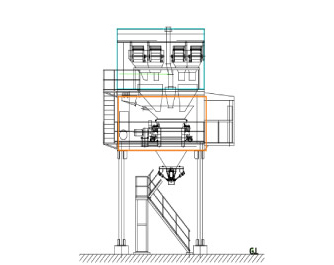

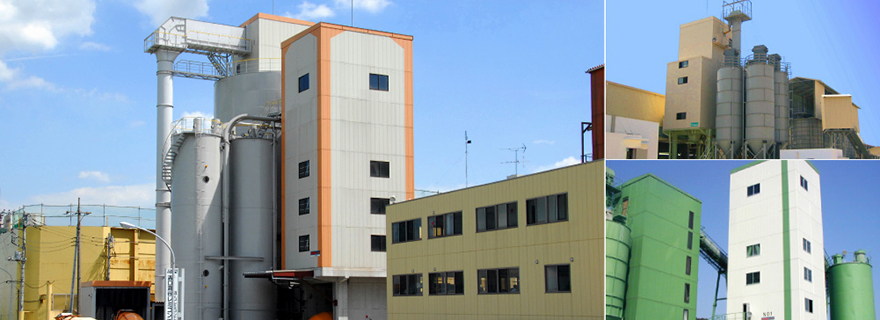

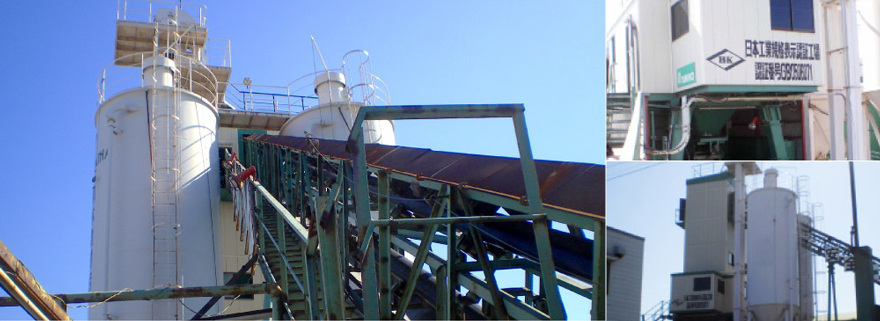

Concrete Batching Plant Lineup Capacity 20m3～45m3 30m3～180m3 60m3～300m3 Batch Pack 20m3～45m3 Simple Structure x Compact Design Despite its compact structure, Batch Pack is a tough concrete batching plant and is compatible with high intensity mixing. Specifications Batch Pack 500 Batch Pack 1000 Storage Bin NONE NONE Weighers (Load-cell) G 1+2 800 x 1.0kg 1+2 1500 x 2.0kg S 1 800 x 1.0kg 1 1500 x 2.0kg C 1 300 x 0.2kg 1 600 x 0.5kg W 1 100 x 0.1kg 1 200 x 0.2kg AD 1+2 4 x 0.01kg 1+2 8 x 0.01kg Control Panel CPF (Standard) / Command Touch B (Optional) Mixer Twin shaft pugmill mixer FSF-500 FSF-1000 / DSF-110 15kW x 1GM 15kW x 2GM / 22kW x 2GM Air seal Air seal Discharge type Concrete chute Concrete chute Air compressor 11kW RECIPRO TYPE Pure water pump 1.5kW×1UNIT High pressure pump for washing 2.2kW×1UNIT Dust collector (Bag filter type) 0.75kW×1UNIT DUST BOX COLLECTING TYPE Supply conveyor G W400×30T/h G W450×55T/h S W400×30T/h S W450×45T/h S type 30m3～180m3 High Performance x Easy assembly The S and SS Series are simple but high-performance concrete batching plants.They can be assembled and dismantled in a short time. Two models of S type batching plants for your choice S4,S2 type The S2 and S4 type are equipped with a material storage bin. Compared to the SS type, they can achieve a higher per-hour capacity. S4,S2 type The SS is a weighing belt conveyor type without a material storage bin. It requires a shorter construction period for assembling and dismantling compared to the S2 and S4 type. Specifications Model SS-50P S2S-50P SS-100P S4S-100P Theoritical discharge output Max. 30m3/H Max. 30m3/H Max. 60m3/H Max. 60m3/H Mixer Max. output/batch SF-500 0.5m3/batch SF-500 0.5m3/batch SF-1000 1.0m3/batch SF-1000 1.0m3/batch Load-cell Weigher (Max. scale × Min. scale) Gravel 800 × 1kg 2kinds 800 × 1kg 2kinds 1500 × 2kg 2kinds 1500 × 2kg 2kinds Sand 800 × 1kg 1kind 800 × 1kg 1kind 1200 × 2kg 1kind 1200 × 2kg 1kind Cement 250 × 0.2kg 1kind 250 × 0.2kg 1kind 500 × 0.5kg 1kind 500 × 0.5kg 1kind Water 150 × 0.1kg 1kind 150 × 0.1kg 1kind 300 × 0.2kg 1kind 300 × 0.2kg 1kind Admixture 8 × 0.01kg 2kinds 8 × 0.01kg 2kinds 8 × 0.01kg 2kinds 8 × 0.01kg 2kinds Control system Command Touch B / Command It's-B Plus Storage capacity N/A 20m3 N/A 40m3 Some photographs in this page show plants fitted with optional equipment. This specifications in this page are subject to change without prior notice due to improvements and/or modifications. DASH 60m3～300m3 Maximum Performance x High Capacity Maximum efficiency for each process and optimal overall balance are pursued. The DASH Series consists of high-performance batch plants that provide maximum performance with minimal investment and that minimize operating costs through maximum operating efficiency. Specifications Model DASH-110 DASH-167 DASH-225 DASH-330 Theoritical discharge output Max. 100m3/H Max. 150m3/H Max. 180m3/H Max. 264m3/H Mixer Max. output/batch DSF-110 1.1m3/batch DSF-167 1.67m3/batch DSF-225 2.25m3/batch DSF-330 3.3m3/batch Load-cell Weigher (Max. scale × Min. scale) Gravel 1500 × 2kg 3kinds 2500 × 2kg 4kinds 3000 × 5kg 4kinds 4000 × 5kg 4kinds Sand 1300 × 1kg 2kinds 2000 × 2kg 2kinds 2500 × 2kg 2kinds 3500 × 5kg 2kinds Cement 550 × 0.5kg 3kinds 1000 × 1.0kg 3kinds 1000 × 1.0kg 3kinds 1500 × 1.0kg 3kinds Water 300 × 0.2kg 2kinds 400 × 0.5kg 2kinds 500 × 0.5kg 2kinds 800 × 0.5kg 3kinds Admixture 8 × 0.01kg 2kinds 20 × 0.02kg 2kinds 10 × 0.02kg 2kinds 20 × 0.02kg 2kinds 20 × 0.02kg 2kinds 30 × 0.05kg 2kinds 30 × 0.05kg 2kinds Control system Command Touch B / Command It's-B Plus Storage capacity 43m3 70m3 110m3 180m3 Some photographs in this page show plants fitted with optional equipment. This specifications in this page are subject to change without prior notice due to improvements and/or modifications.
